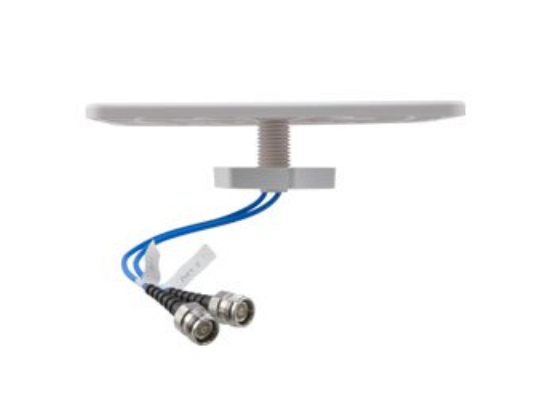

Omni Celling Antenna
Model: AGL-OM-4K-NF-S/M
Features
- Wide frequency band coverage (698-960/1710-2700MHz)
- High gain performance (2.5/5 dBi)
- Low VSWR for improved signal quality
- Low Passive Intermodulation (PIM)
- 360-degree omnidirectional coverage
- Compact and lightweight design (0.25 KG)
- Durable ABS construction
- Wide operating temperature range (-40°C to +60°C)
- Multiple connector options (NF/4.3-10)
- DC-bypass capability for remote electrical adjustment
Product Overview
The AGL-OM-4K-NF-S/M Omni Celling Antenna is designed for indoor wireless communication systems, providing 360-degree coverage with excellent performance. This antenna supports multiple frequency bands including 698-960MHz and 1710-2700MHz, making it ideal for GSM, CDMA, PCS, CDMA2000, WCDMA, TD-SCDMA, TD-LTE, and FDD-LTE systems.
With its compact design and high gain, this antenna is perfect for installation in offices, shopping malls, airports, hospitals, and other indoor environments where reliable wireless coverage is essential. The antenna features low VSWR and low passive intermodulation (PIM) to ensure signal clarity and system performance.
Constructed with durable ABS material, the AGL-OM-4K-NF-S/M is built to last while maintaining a sleek, unobtrusive appearance that blends seamlessly with indoor environments.
| RF Antenna Type | Omni Celling Antenna |
| Model Number | AGL-OM-4K-NF-S/M |
| Frequency Band | 698-960/1710-2700MHz |
| Polarization | Vertical |
| Gain | 2.5/5 dBi |
| Horizontal Lobe Width | 360° |
| Vertical Lobe Width | 91° |
| VSWR | ≤2.0/1.5 |
| Input Power | 50W |
| Impedance | 50Ω |
| PIM3 | -120 dBc or -150dBc or -153dBc |
| Lightning Protection | DC Ground |
| DC-bypass | Available |
| Connector | NF/ 4.3-10 |
| Materials | ABS |
| Color | White |
| Working Temperature | -40°C to +60°C |
| Dimensions | 186x86mm |
| Weight | 0.25 KG |
